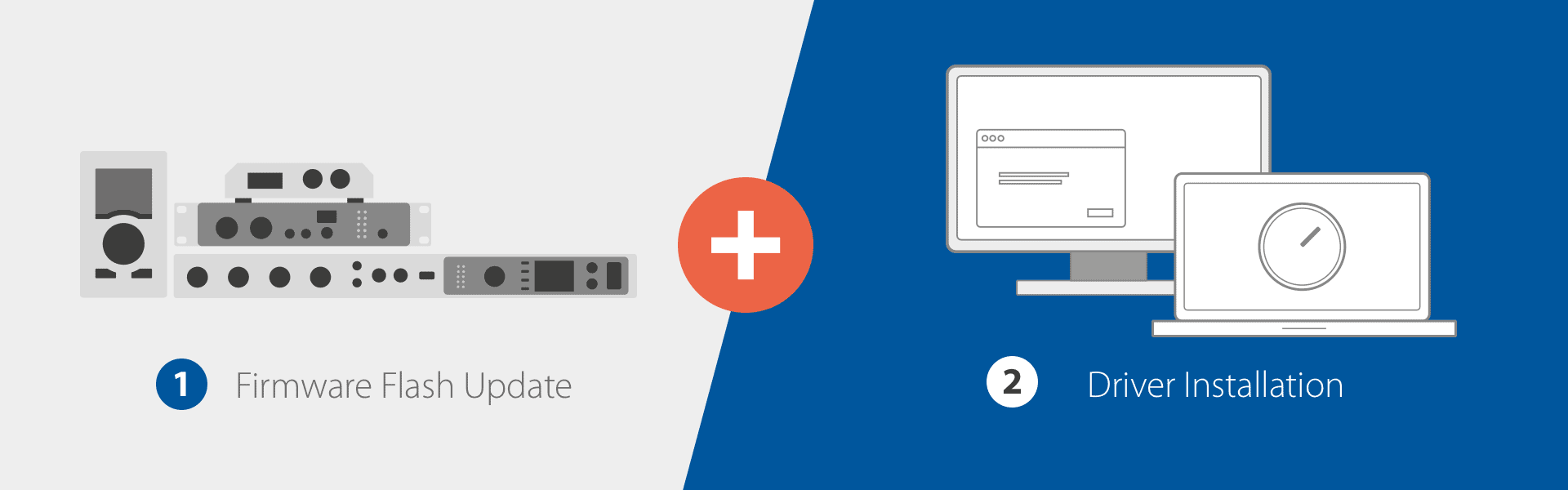

Important note on installation
Attention: The DriverKit driver recognizes the audio interface only if it has the new DriverKit firmware.
Therefore, update the firmware first. This can be done under Windows, an older macOS with the previous kernel drivers, but also macOS12/13 with the kernel drivers installed. A firmware update under macOS12/13 or up with the DK driver, from Legacy to DK, is NOT possible!
As the only audio interface the HDSPe AIO Pro does not need to be updated.
Link to firmware update tool HDSPe:
https://rme-audio.de/downloads/fut_mac_dspe.zip
This program updates the HDSPe firmware to the latest revision:
HDSPe Revision 2 series
|
Modell |
Legacy |
DriverKit |
|
HDSPe MADI |
210 |
216 |
|
HDSPe AIO Pro |
23/108 |
26/110 |
|
HDSPe RayDAT |
207 |
210 |
|
HDSPe AES |
204 |
207 |
Legacy HDSPe series
|
Modell |
Legacy |
DriverKit |
|
HDSPe PCI |
20 |
21 |
|
ExpressCard |
20 |
21 |
|
HDSPe MADI |
33 |
35 |
|
HDSPe RayDAT |
18 |
20 |
|
HDSPe AES |
11 | 13 |
|
HDSPe MADIface |
23 | 24 |
|
HDSPe AIO |
14 | 201 |
Link to firmware update tool for MADIface XT and HDSPe MADI FX:
https://www.rme-audio.de/downloads/fut_hdspe_fx_mac.zip
This program updates the firmware to the latest revision:
HDSPe MADI FX Revision 2
|
Legacy |
DriverKit |
|
FPGA DSP |
FPGA DSP |
|
215, 31 |
216, 31 |
HDSPe MADI FX Revision 1
|
Legacy |
DriverKit |
|
FPGA DSP |
FPGA DSP |
|
91, 26 |
92, 26 |
MADIface XT
|
Legacy |
DriverKit |
|
FPGA DSP |
FPGA DSP |
|
56, 31 |
57, 31 |
Link to HDSPe DriverKit Driver:
Download the macOS 12 or up HDSPe Series DriverKit Driver
Downloads
Installation Guide
How to install the latest RME Audio driver for macOS 11 and up on Intel or M1/M2 Chipsets
